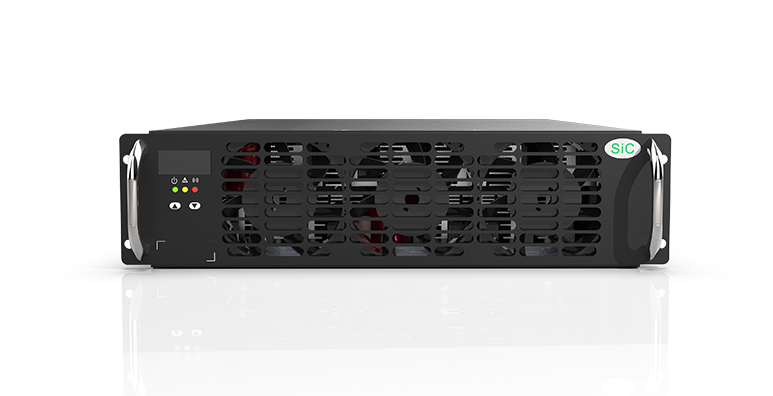

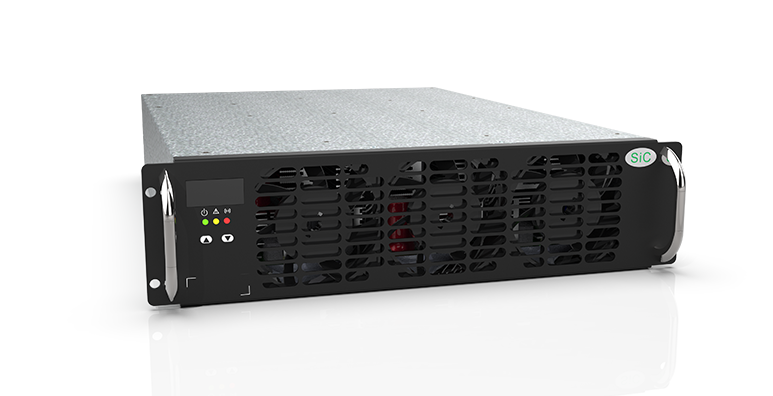

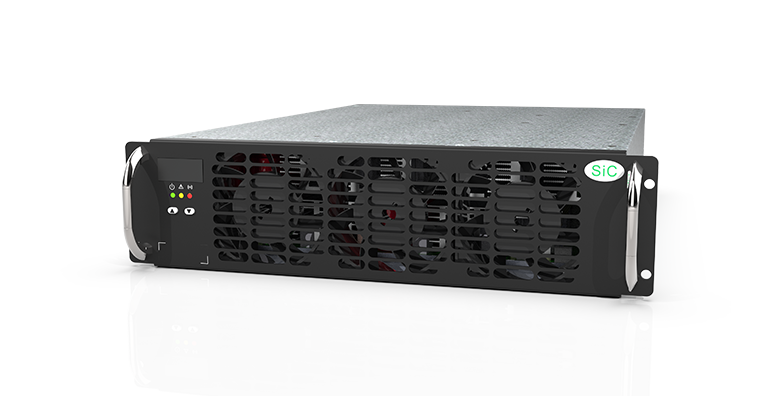

UR100040SW-SiC(EU)

制品绍介

UR100040SW-SiC(EU) 充電モジュールは、EV充電の電力変換装置用に特別に設計された世界有数の電力技術を採用し、超幅広い一定の出力電圧範囲を備えています。アクティブパワーファクター補正、高効率、高信頼性、インテリジェントな制御、魅力的な外観の特性を備えています。このモジュールは、高出力密度と小さなスペース占有を備えたインテリジェントな空冷放熱技術を採用しています。ホットプラグとバッテリーバック充填保護の機能を備えています。

Main Features

Compatibility

same size as 30kW module, support smooth system upgrade

Easy to operate

LED screen can display voltage, current, group, protocol, address, manual/automatic information and various alarm information

High reliability

input and output multiple protection, input overvoltage and undervoltage, output overvoltage and undervoltage, overcurrent and short circuit protection

Ultra-high power density

the highest power density in the industry

Technical Parameters

AC Input

Input voltage	260VAC~530VAC
Input frequency	55±10Hz
THD	≤5%
Power factor	Rated output load PF ≥ 0.99
Input under voltage protection	255±5V
Input over voltage protection	530±5V
Input Power Derating	260±5V

DC Output

Rated output	1000V/40A
Constant power voltage range	40kW (300V~1000V)
Output voltage range	150V~1000V
Output current range	0~133.3A
Output over voltage protection	1010±5V
Output under voltage alarm Constant	140±2V
Short circuit protection	Short circuit retraction constant current output is adopted in case of short circuit, which can be recovered automatically
Voltage stabilized accuracy	≤±0.5%
Load sharing	≤±3%
Max. startup overshoot	≤±1%
Current stabilized accuracy	≤±1%
Startup time	1s
Efficiency	Peak efficiency>97%, Rated efficiency>96%

Communication & Alarm

Communication	CAN
Max. Number of parallel machines	60pcs
Alarm and status	CAN bus communication LED display

Operating Environment

Operating temperature	-40℃~75℃,derates from 55℃
Overtemperature protection	On temperature >75°C±4°C or <-40°C±4°C, module will shut down automatically
Storage temperature	- 40°C~85°C
Humidity	≤95% RH, without condensation
Atmospheric pressure/ Altitude	79kPa~106kPa/2000m
